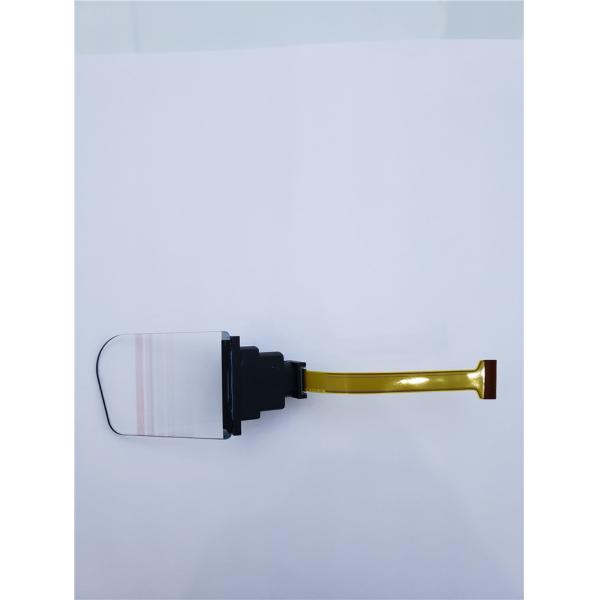

0.23 Inch OLED Waveguide 0-90 Nits Micro Display Module For Wearable AR Glasses

Product introduction

0.23 inch optical waveguide module is composed of three parts, an OLED ( Organic Light-Emitting Diode ), an optical engine and a geometrical waveguide. The OLED image collimated by the optical engine; the final imaged will be guided into the geometrical waveguide. Finally, an 52” virtual image displays at 3 meters away, the FOV (Field of View) can reach 25 degrees at that point.

The OLED uses Sony 336C.

Product Details

Features

• Small size display with full high definition(0.23" OLED 640*400).
• High contrast
• Wide range of color reproduction
• High response speed
• Thin and light
• Power saving function
• Up/down/left/right inverse display function
• Transparent optical waveguide lenses with a thickness of only 1.5mm, ideal for AR products.
• The OLED micro display module can reduce customer development time and cost. It has small volume, light weight and can be easily applied to customer product development and design.
• Easy use, plug power supply and input signals, then it will work.
• Automatically adjust monitor brightness according to ambient brightness, maximum energy saving.
• Modular design, easy to maintain.

Optical specifications

• MTF: When the spatial frequency is 30.0 lp/mm, the MTF of the module is more than 0.2.
• Distortion: less than 3%.
• Field of View:

Tag:Micro display module, OLED display, Optical waveguide display module.

As the speedy development of technology, we believe that in the near future, smart glasses will be used by almost everybody. It is the concept that will in all likely hood replace the smartphone in a near future. It will be a huge market. But how to take the market opportunities? How to find a cheap but excellent ODM & OEM service provider? Shenzhen Anpo Intelligence Technology Co., Ltd (referred to as ENMESI, its own brand) Will be your best choice.

   Shenzhen Anpo Intelligence Technology Co., Ltd （ ANPO ZHINENG(HONGKONG) TECHNOLOGY LIMITED）    is a high-tech company integrating R&D, production and sales.

    ENMESI is a reliable ODM & OEM manufacturer, specializing in customized solutions in the areas of head mounted display, FPV goggle, AR/VR glasses, 2D/3D video glasses, vision training glasses, monocular and binocular micro-display etc since establishment in the year 2014.

    With the powerful and professional R&D team, led by a highly seasoned management team with rich experience, based on the advanced science and technology, and keep on self-motivation and innovation, ENMESI became the one of market leader for smart glasses solutions source.

  Since its establishment, ENMESI has always adhered to the principle of " Quality First, Integrity First" .With professional R&D technology, quality assurance and first-class service, the company's business has spread all over the world and has won the trust and good reputation from most of the customers.
